Cryogenic Filters

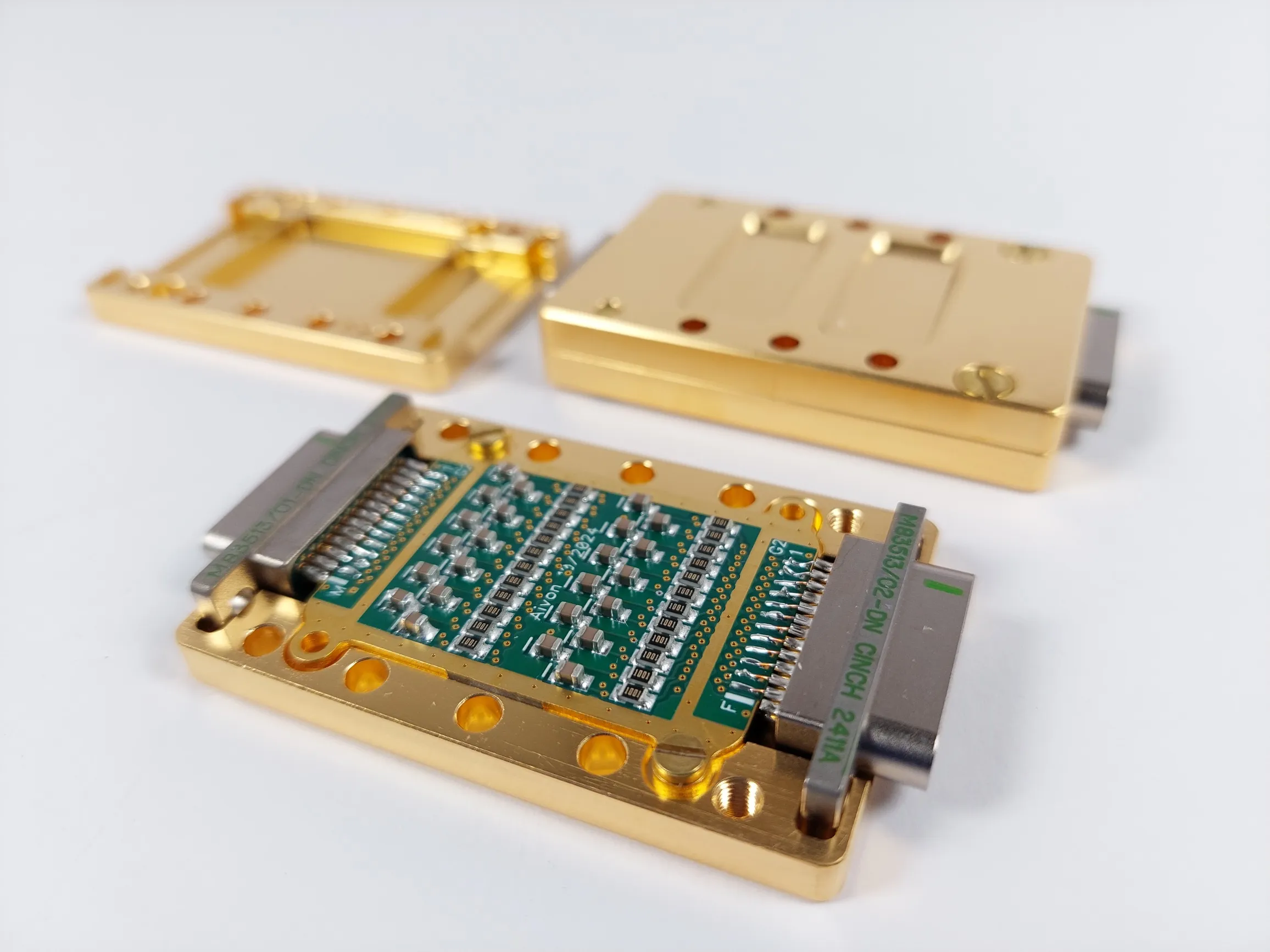

Cryogenic filters are low frequency (<1 GHz) low-pass filters that are used to filter out unwanted high frequency signals from signals that user is feeding to cryogenic device or signals that are returning from device to room temperature measuring equipment. The standard RC low pass filters contain surface-mount resistors and capacitors. We also make custom filters with inductors, feedthru capacitors and feedthru filters.

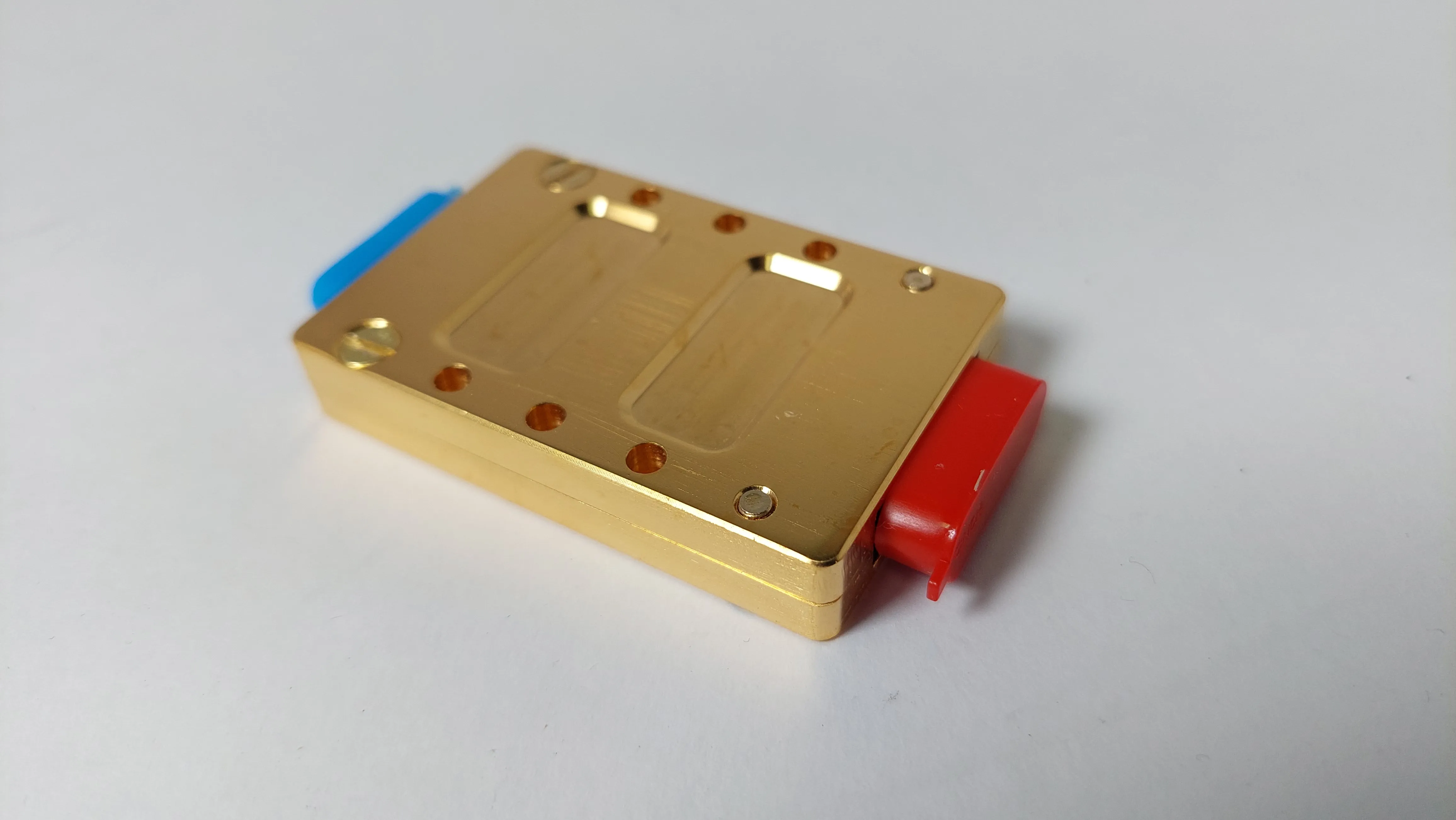

Therma-uD25-PW
Two-stage RC filter with pairwise action. No capacitor to ground (=enclosure). User-defined components size 0805.
Therma-uD25-G2F
Two-stage RC filter with capacitors to ground (=enclosure). User-defined components size 0805.

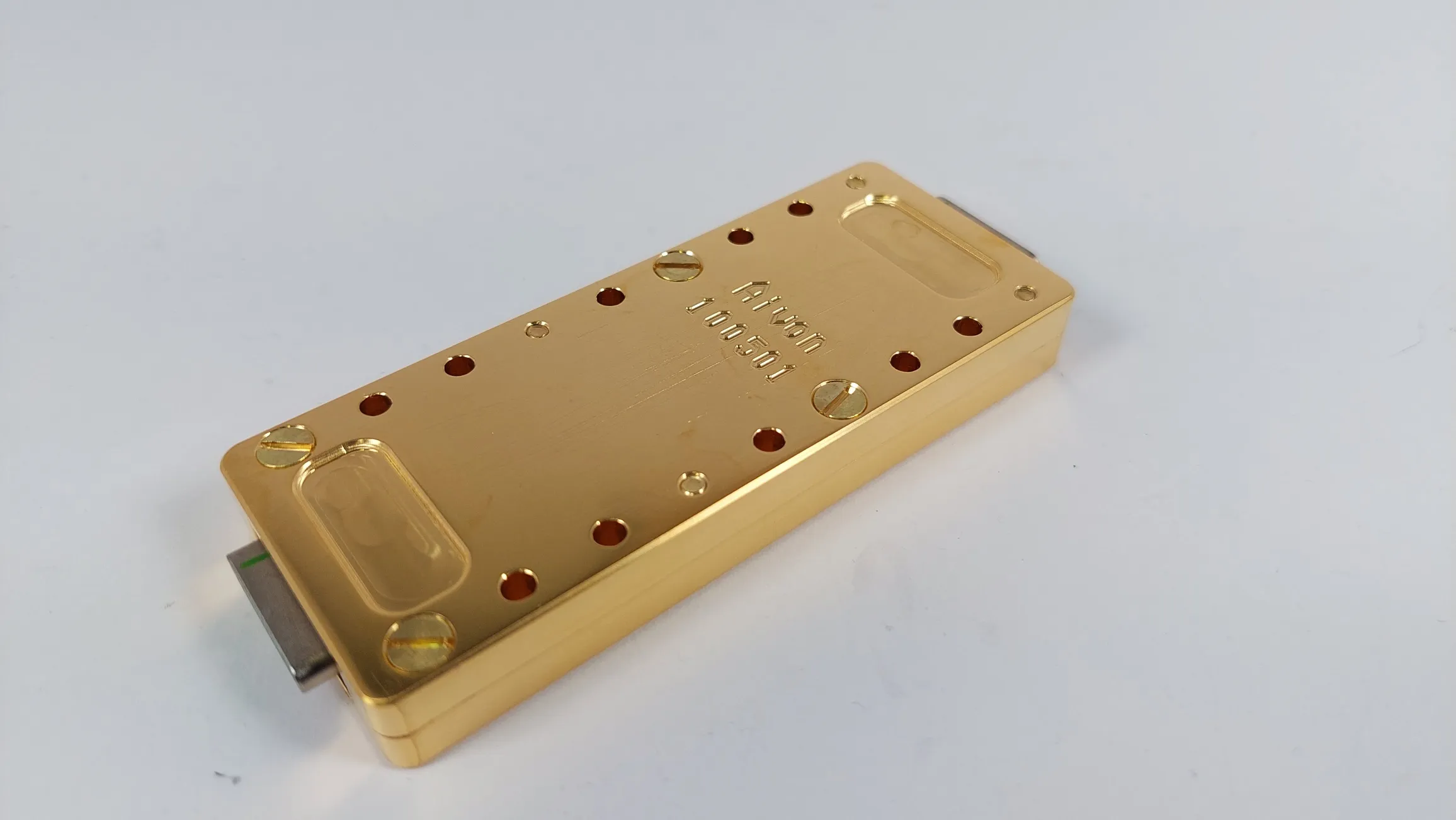

Therma-uD25-G2-2220
As 100402 but with 2220 sized capacitors. 2-RC loops to ground, straight Cinch M83513-series connectors with wires, Au-plated copper or Al, large 2220 capacitors up to 940 nF.

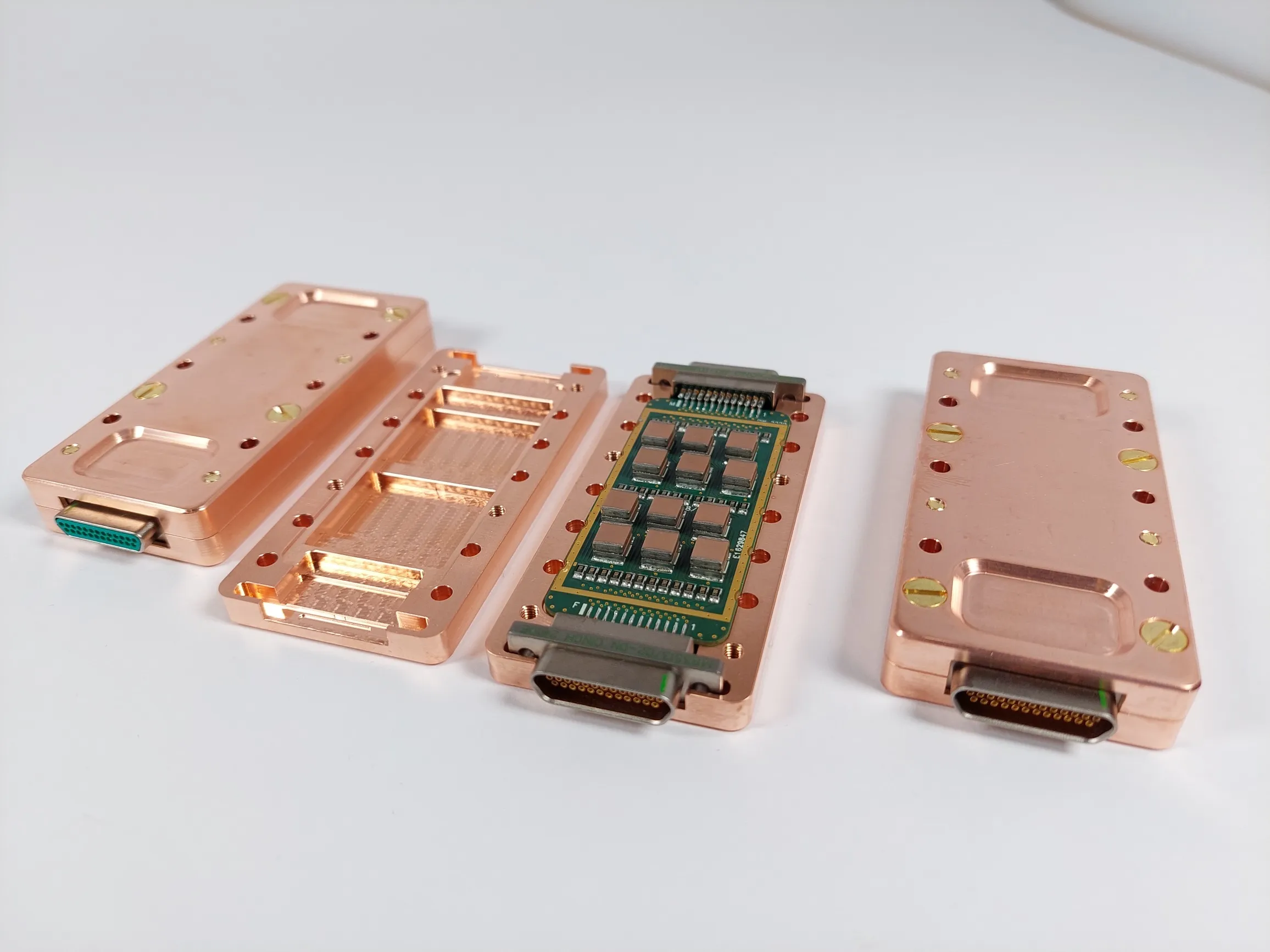

Therma-uD25-PW-2220
As 100302 but with 2220 sized capacitors up to 940 nF.

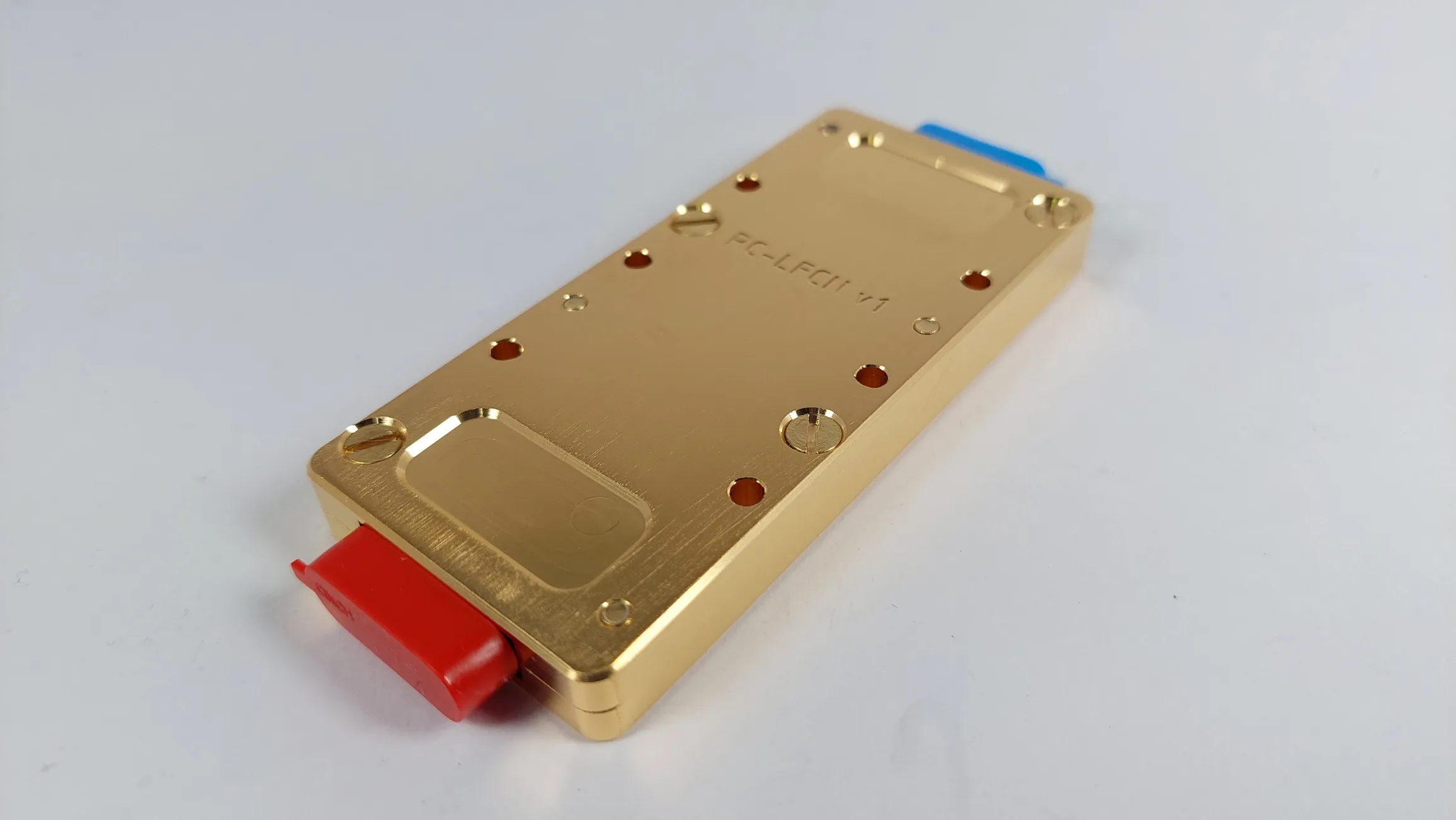

Therma-uD25-RC-LFCN
Cryogenic filter with two RC loops and three Mini-circuits LFCN pi filters in series.
