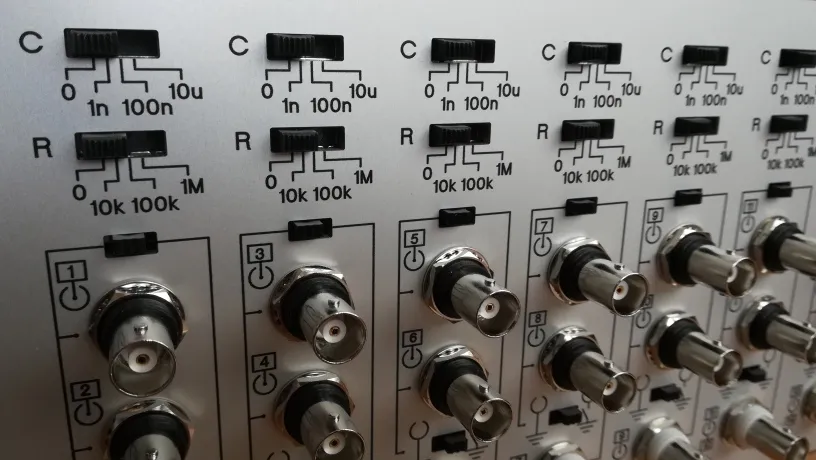

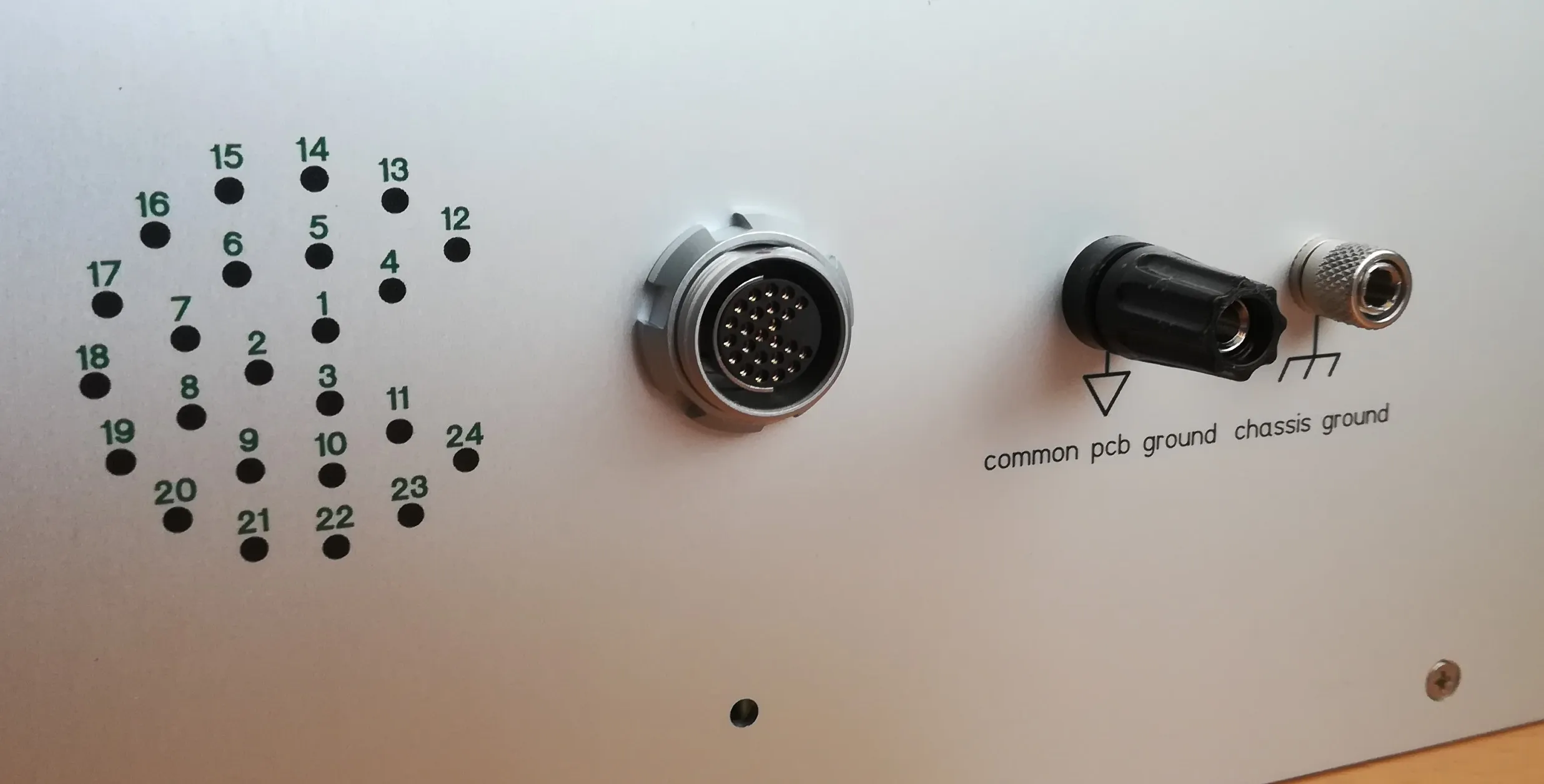

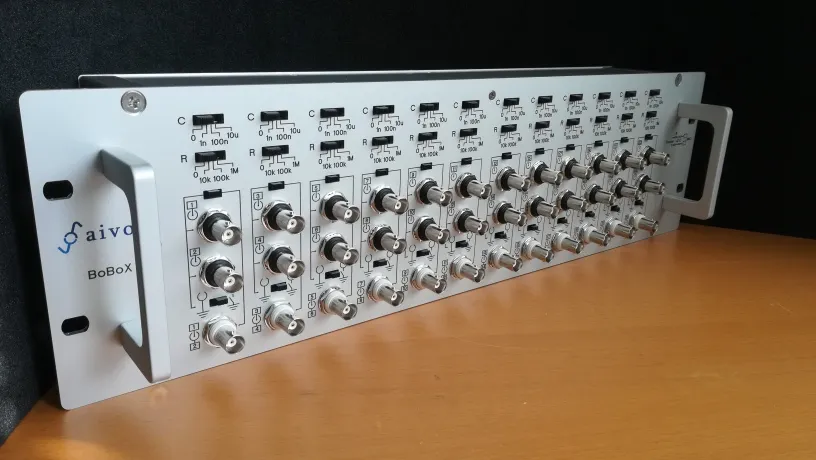

We have built a BNC breakout for Fischer-24 pin connector with selectable RC filters. The filter takes place between pairs of twisted pair lines (1-2, 3-4, ). It is possible to disable filtering if needed.
We have built a BNC breakout for Fischer-24 pin connector with selectable RC filters. The filter takes place between pairs of twisted pair lines (1-2, 3-4, …). It is possible to disable filtering if needed.
We have designed a microD25 to 24 SMP adapter. Enclosure Au-plated copper. M3 mounting holes at the sides. Ask for different gender, orientation, rf connector, shape or any other feature.
We provide Au-plated copper mounting brackets in three different sizes. Please see our brochure
We designed and manufactured cryogenic RC filter using large 940 nF capacitors. These models are available for both pairwise (PW) and ground-referenced (G2) two-stage filters.
We have designed a microD25 to 24 SMA adapter. Enclosure Au-plated copper. M4 mounting holes at the back. Ask for different gender, orientation, rf connector, shape or any other feature.
