Fischer Cables
Fischer cables are used at room temperature to connect Nord Cryo breakout boxes to cryostat. There are several shielding options and we can also customize the connectors and add ferrites etc. to the cables. Length is customizable as well.
Fischer-Fischer cable with single common shield
Twelve twisted pairs in a common shield. Fischer S105A093-80+ connector at both ends of cable. Shield connected to connector bodies at both ends. Other lengths upon request.

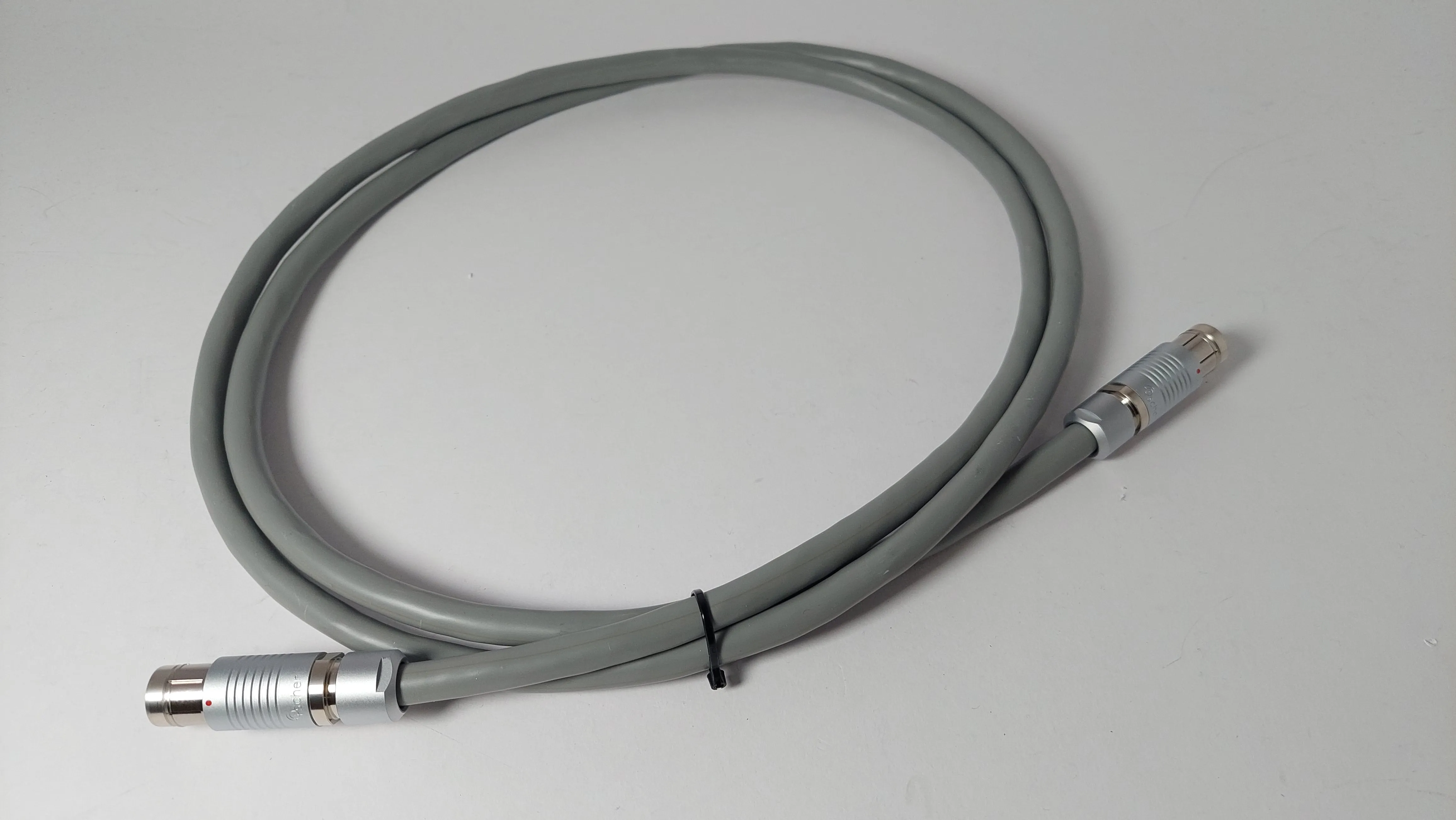

Fischer-Fischer cable with individual pair shields
Twelve twisted pair cable with individual pair shields. Fischer S105A093-80+ connector at both ends of cable. Shields connected to connector body at both ends.

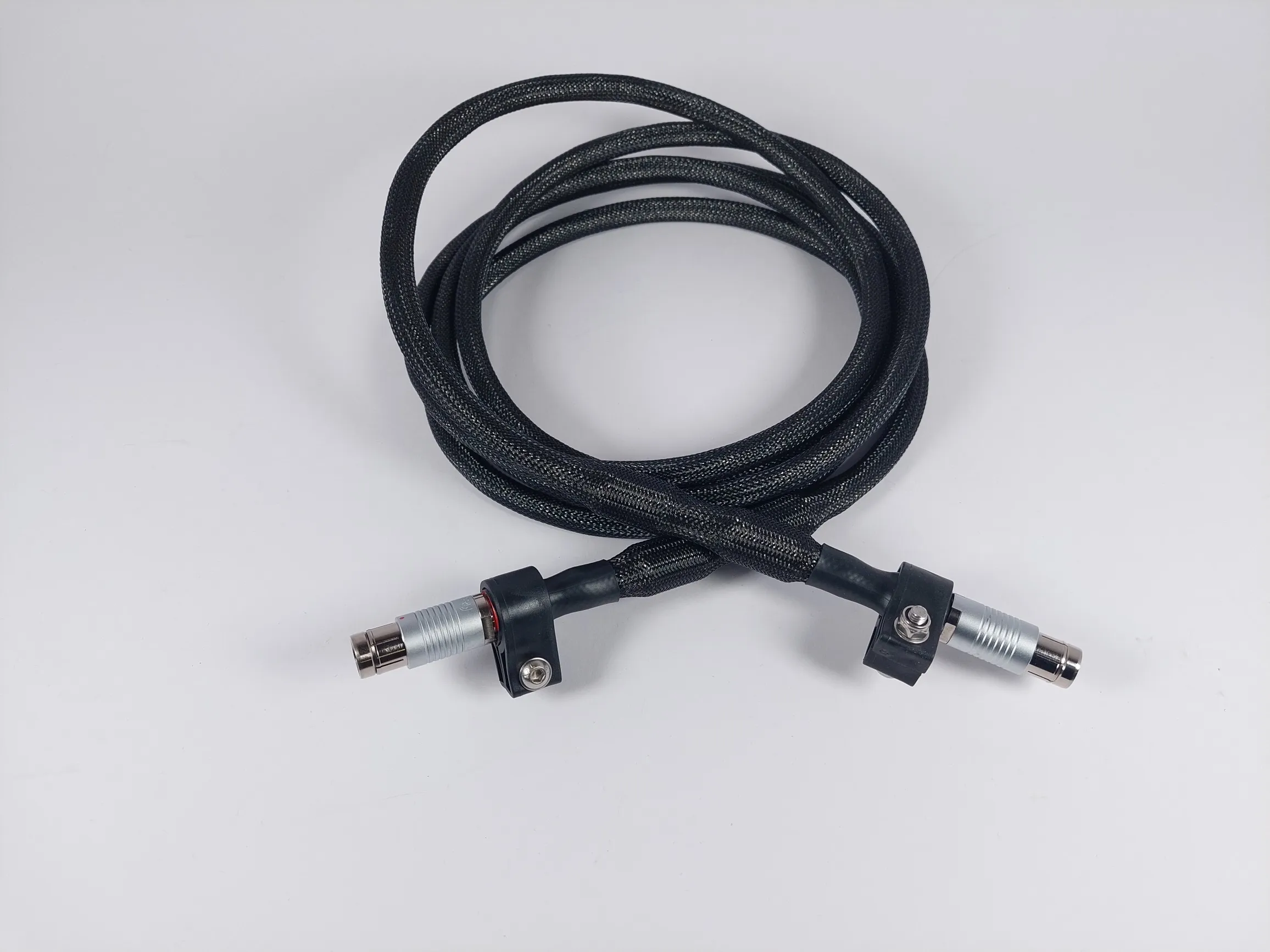

Fischer-Fischer cable with individual pair shields, common shield and nylon outer shield
Twelve twisted pair cable with individual pair shields, additional metallic common outer braided shield and nylon braided shield. Fischer S105A093-80+ connector at both ends of cable. All shields are connected to connector body at both ends.

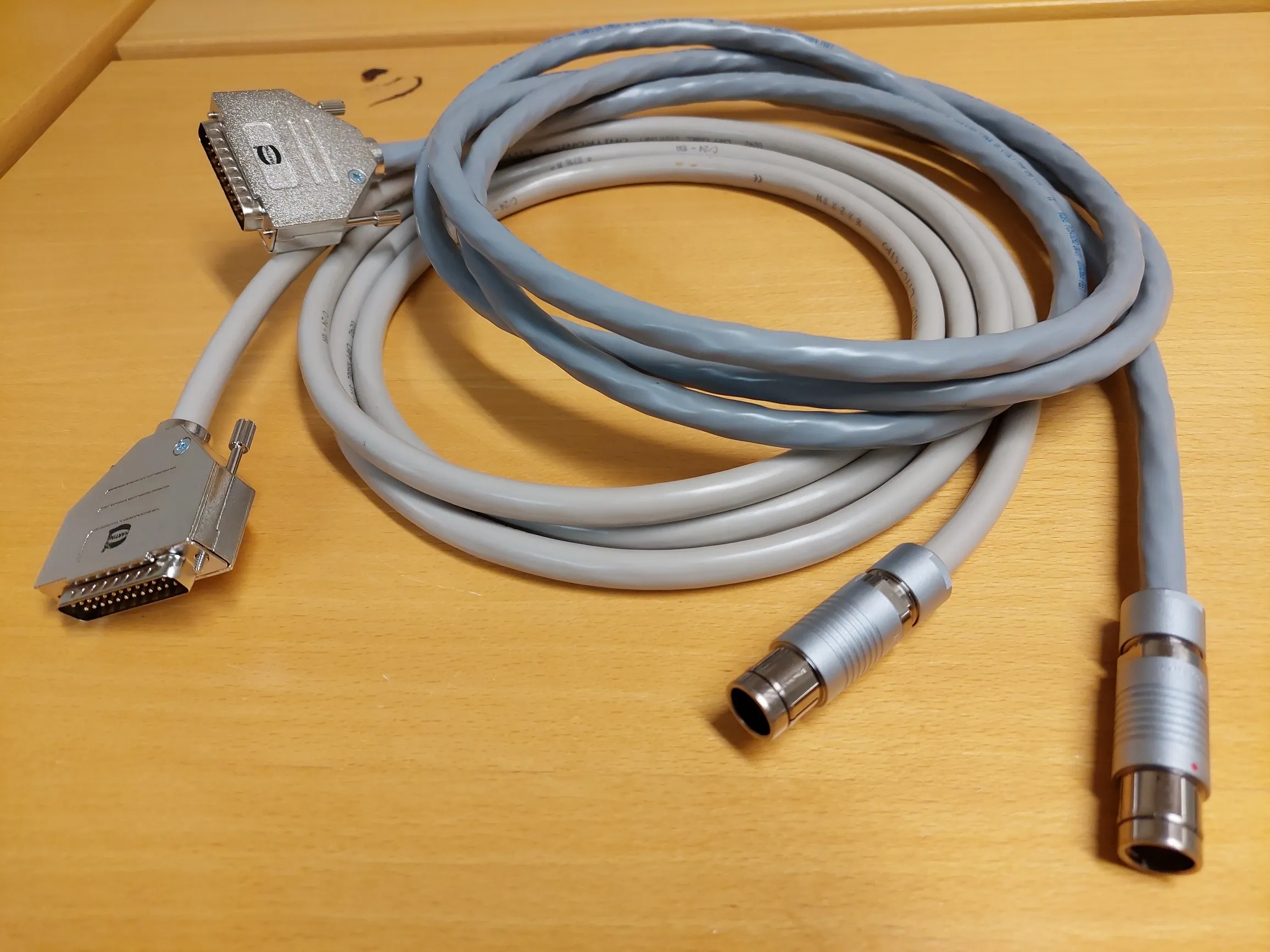

Fischer-D25 cable with single common shield
Fischer to male/female Dsub25 connector cable. 12 twisted pairs in common shield.
Fischer-D25 cable with individual pair shields
Fischer to male/female Dsub25 connector cable. 12 twisted pairs with individual pair shields.
Fischer cable with single common shield, one end cut without connector
Fischer cable with individual pair shields, one end cut without connector

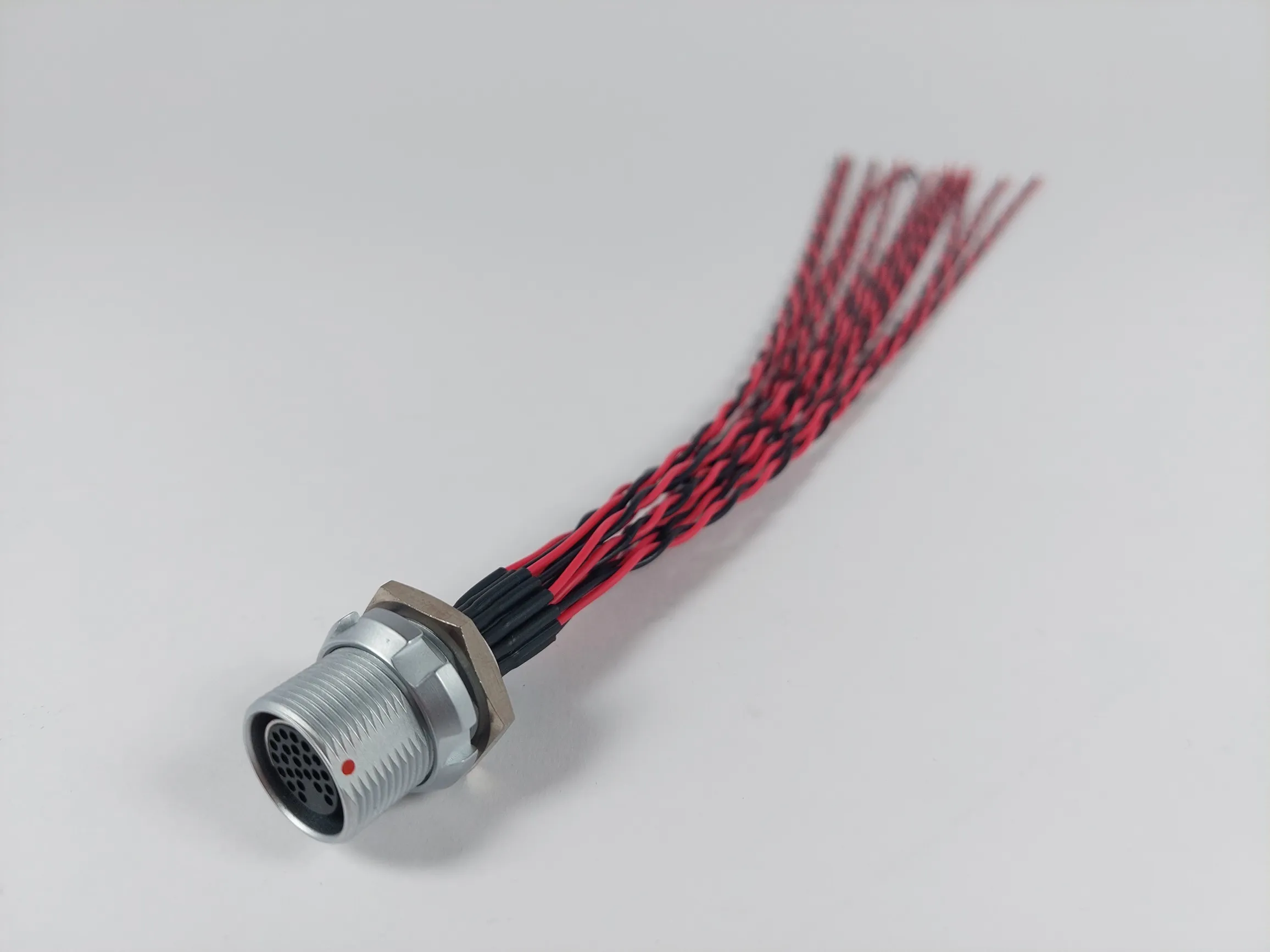

Fischer pigtail
Wire gauge 24 AWG. Length 30 cm. Other lengths upon request.
