Products
Nord Cryo manufactures cryogenic electronics and mechanics for research laboratories. Browse our product categories below.
Cryogenic Filters
Cryogenic filters are low frequency (<1 GHz) low-pass filters that are used to filter out unwanted high frequency signals from signals that user is feeding to cryogenic device or signals that are returning from device to room temperature measuring equipment. The standard RC low pass filters contain surface-mount resistors and capacitors. We also make custom filters with inductors, feedthru capacitors and feedthru filters.
5 products

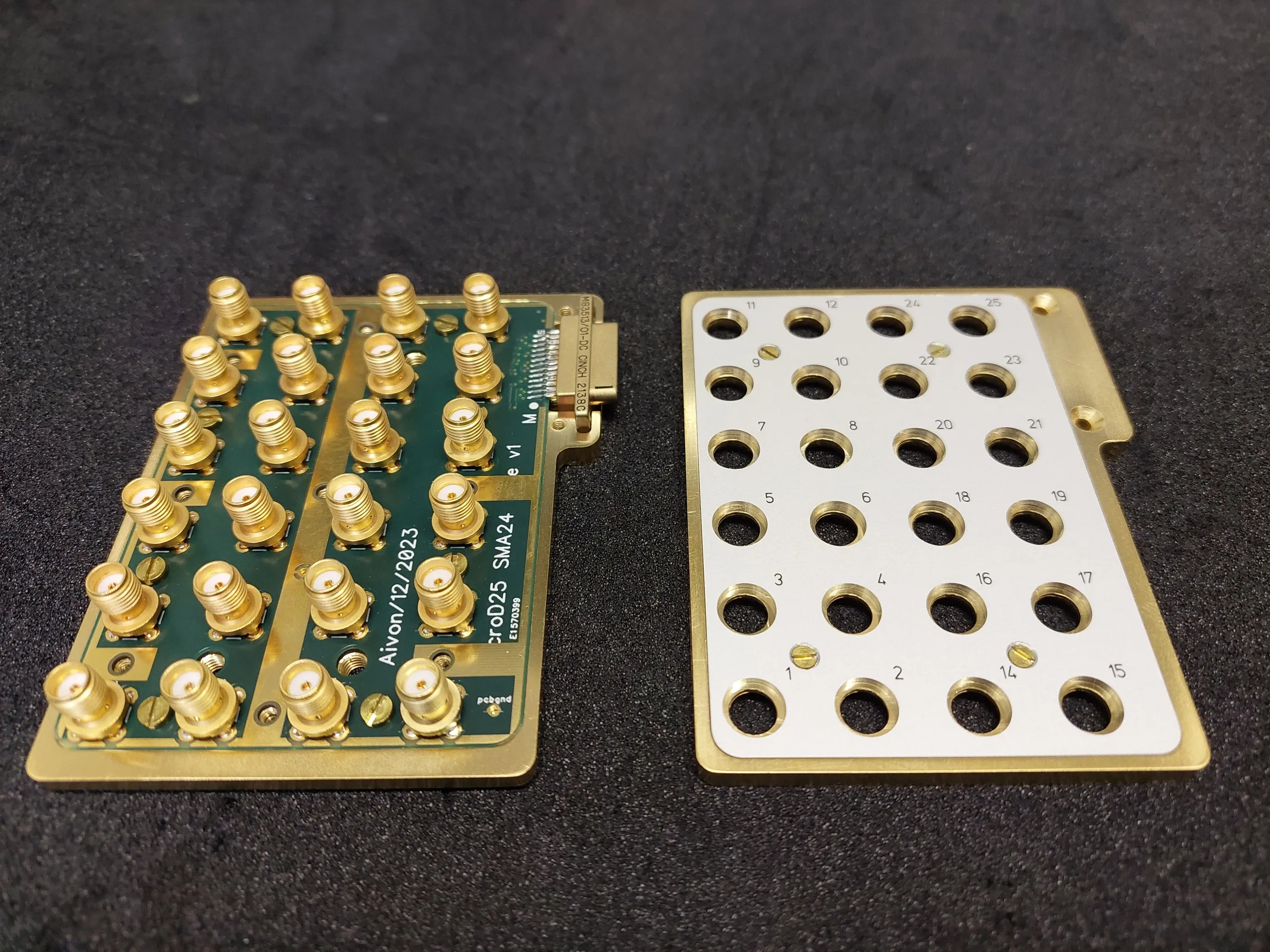

Adapters
Cryogenic adapters are used to break out signals from one 25-pin microD connector to several SMA or SMP connectors in order for the user to easily connect the signals to several locations in the cryogenic setup. Filtered adapters have RC filter in each line between the connectors. We can customize the enclosure and filter upon request.
7 products

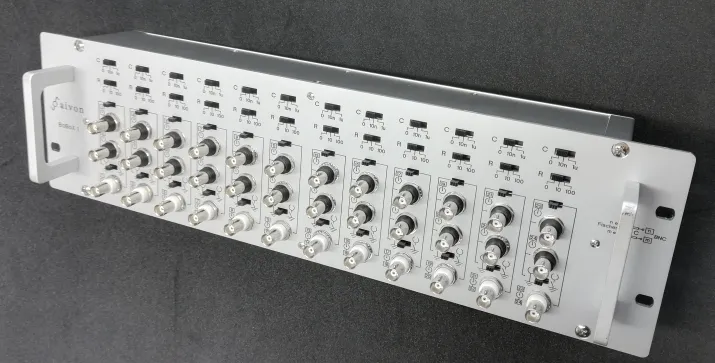

Breakout Boxes
Breakout boxes are used at room temperature to break out signals from one 24-pin Fischer connector to several BNC or SMA connectors in order for the user to easily connect the signals to several locations in the room temperature measurement setup. Filtered breakout have RC filter in each line between the connectors. In some models the lines can be grounded to protect the sensitive parts at cryogenic temperature. We can customize the enclosure, connectors, grounding schemes and filters upon request. The breakout boxes are connected to the cryostat using Fischer cables.
6 products

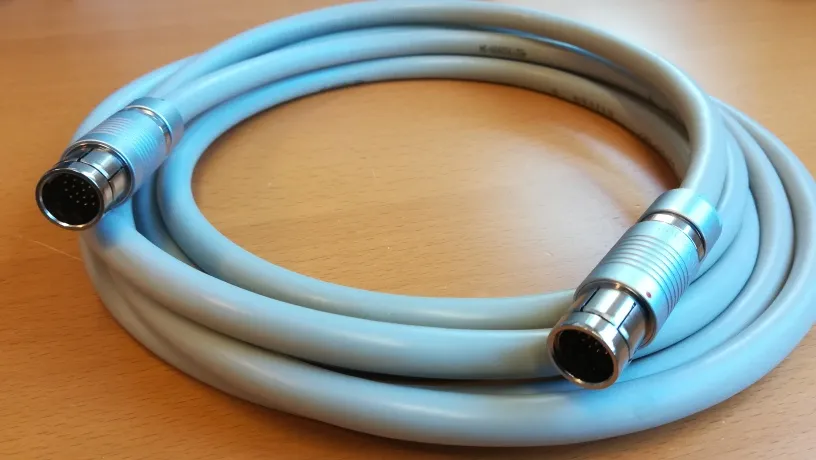

Fischer Cables
Fischer cables are used at room temperature to connect Nord Cryo breakout boxes to cryostat. There are several shielding options and we can also customize the connectors and add ferrites etc. to the cables. Length is customizable as well.
8 products
Cryomechanics

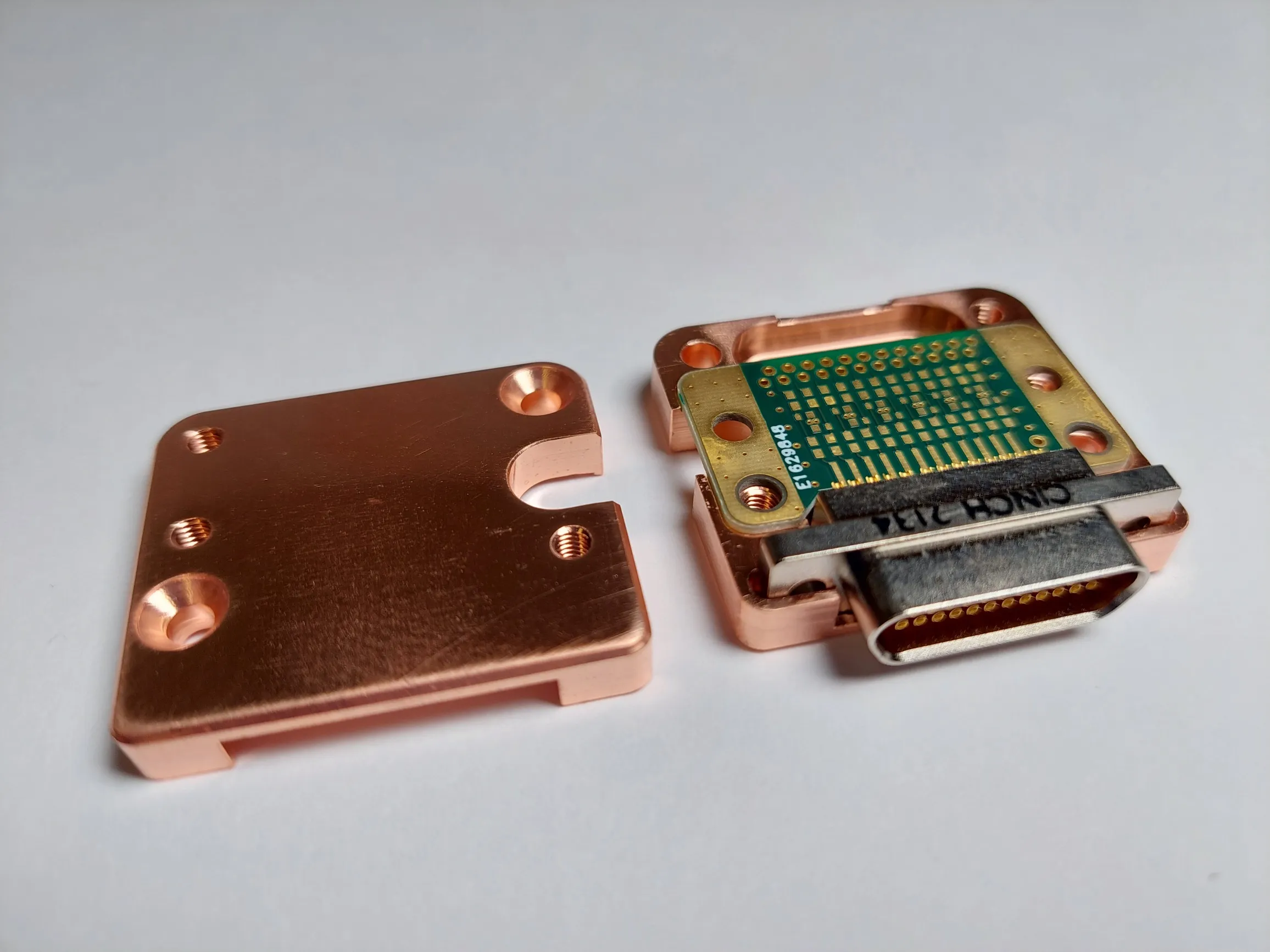

Miscellaneous cryogenic and room temperature parts. Therma brackets are simple mounting brackets for cryogenic mounting. Minitherma is a microD25 wiring adapter with or without sites for RC filter components. We can design any cryomechanical part upon request.
5 products
Sample Holders
Cryogenic sampleholders with selected connectors and internal pcb for chosen chip size. Au-plated copper. Customized designs based on customer's requirements.
2 products
