Exchangeable sample holder for electron pump devices

We have designed and manufactured cryogenic and non-magnetic sample holder with three rf connectors (SMP) and multi-pin dc connector (Omnetics, 21 lines). The design work was made in collaboration with e-Si-AMP consortium consisting of leading metrology institutes (www.e-si-amp.eu). The holder has duplicate dc connector for grounding. This makes it possible to transport sensitive samples between Read more about Exchangeable sample holder for electron pump devices[ ]

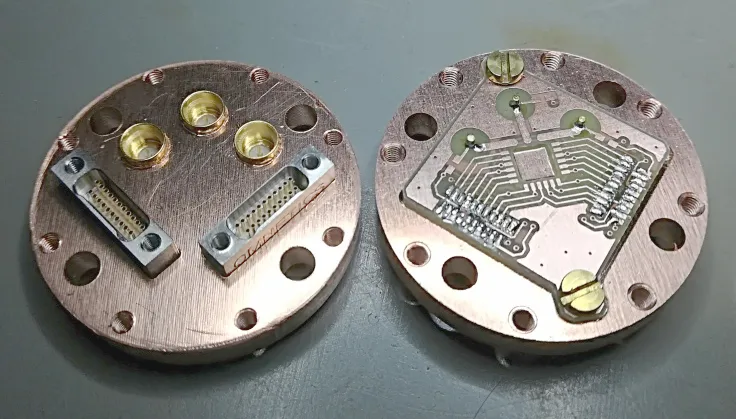

Exchangeable sample holder for electron pump devices

We have designed and manufactured cryogenic and non-magnetic sample holder with three rf connectors (SMP) and multi-pin dc connector (Omnetics, 21 lines). The design work was made in collaboration with e-Si-AMP consortium consisting of leading metrology institutes (www.e-si-amp.eu). The holder has duplicate dc connector for grounding. This makes it possible to transport sensitive samples between different laboratories. The diameter of the copper holder is 32 mm. It is also possible to cover the holder with non-magnetic gold. Please contact us for quotation or further details.

    Share:

    Related Posts

    View All Posts »
    24-SMP to MicroD25 adapter

    24-SMP to MicroD25 adapter

    We have designed a microD25 to 24 SMP adapter. Enclosure Au-plated copper. M3 mounting holes at the sides. Ask for different gender, orientation, rf connector, shape or any other feature.

    Cryogenic filter with 940 nF capacitors

    Cryogenic filter with 940 nF capacitors

    We designed and manufactured cryogenic RC filter using large 940 nF capacitors. These models are available for both pairwise (PW) and ground-referenced (G2) two-stage filters.

    24-SMA microD25 adapter

    We have designed a microD25 to 24 SMA adapter. Enclosure Au-plated copper. M4 mounting holes at the back. Ask for different gender, orientation, rf connector, shape or any other feature.
