Micro-D25 adapters

We design and manufacture Micro-D25 adapters to various connector types (SMA, SMP, MCX, nano-D etc) or for direct soldering. The adapters can be single block units with all input/output connectors in single enclosure or combinations of micro-D connector, shielded cable and output connector enclosure. Aluminum enclosure as standard, Au-plated copper upon request.

Micro-D25 adapters

We design and manufacture Micro-D25 adapters to various connector types (SMA, SMP, MCX, nano-D etc) or for direct soldering. The adapters can be single block units with all input/output connectors in single enclosure or combinations of micro-D connector, shielded cable and output connector enclosure. Aluminum enclosure as standard, Au-plated copper upon request.

Micro-D25 to 24 SMP adapter in aluminum enclosure. Size 55 mm x 40 mm x 10 mm without connectors.

Micro-D25 to 24 SMP adapter. 12 SMP connectors in both sides. Common ground.

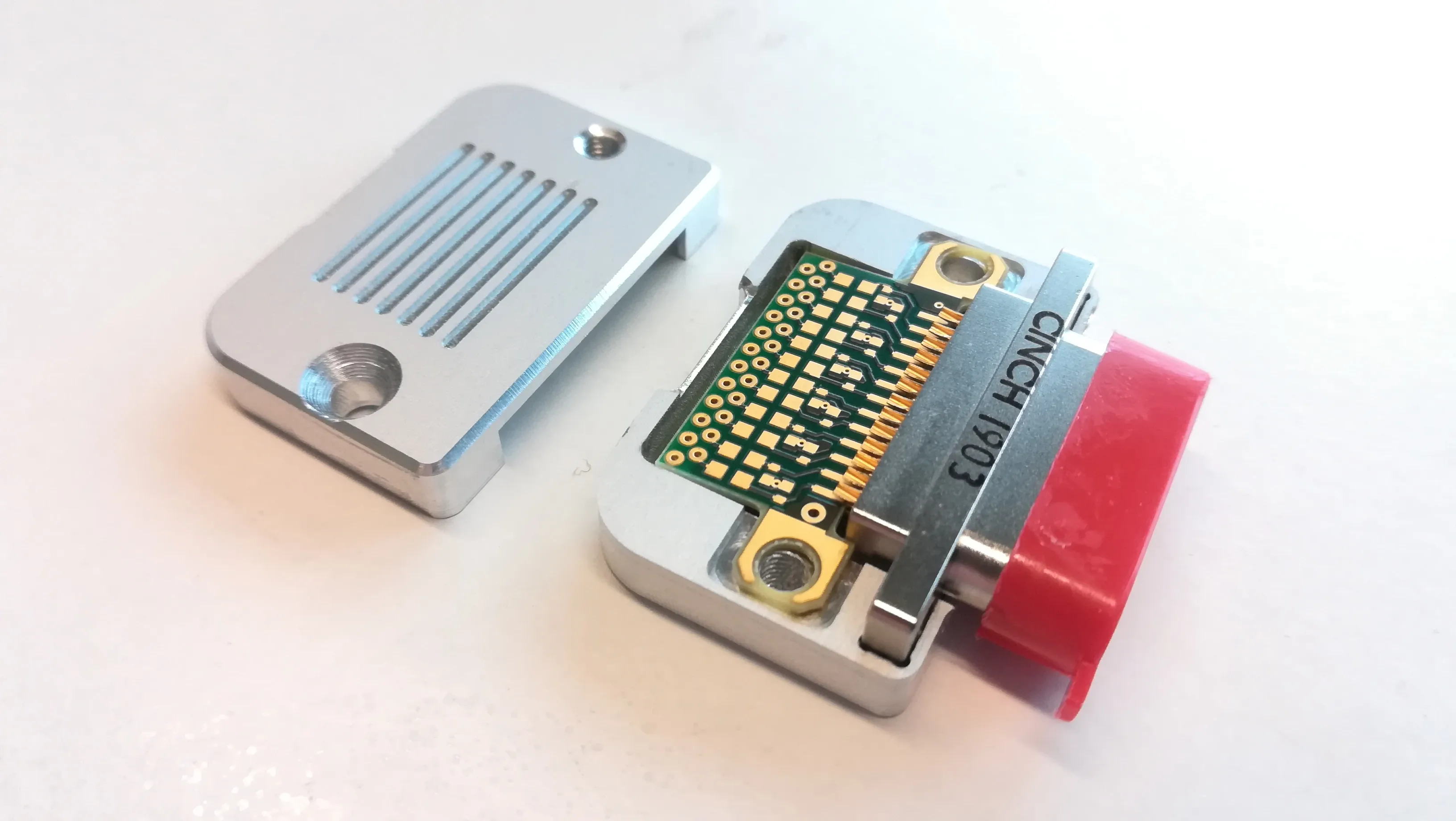

Micro-D25 to 24 SMP enclosure (one half)

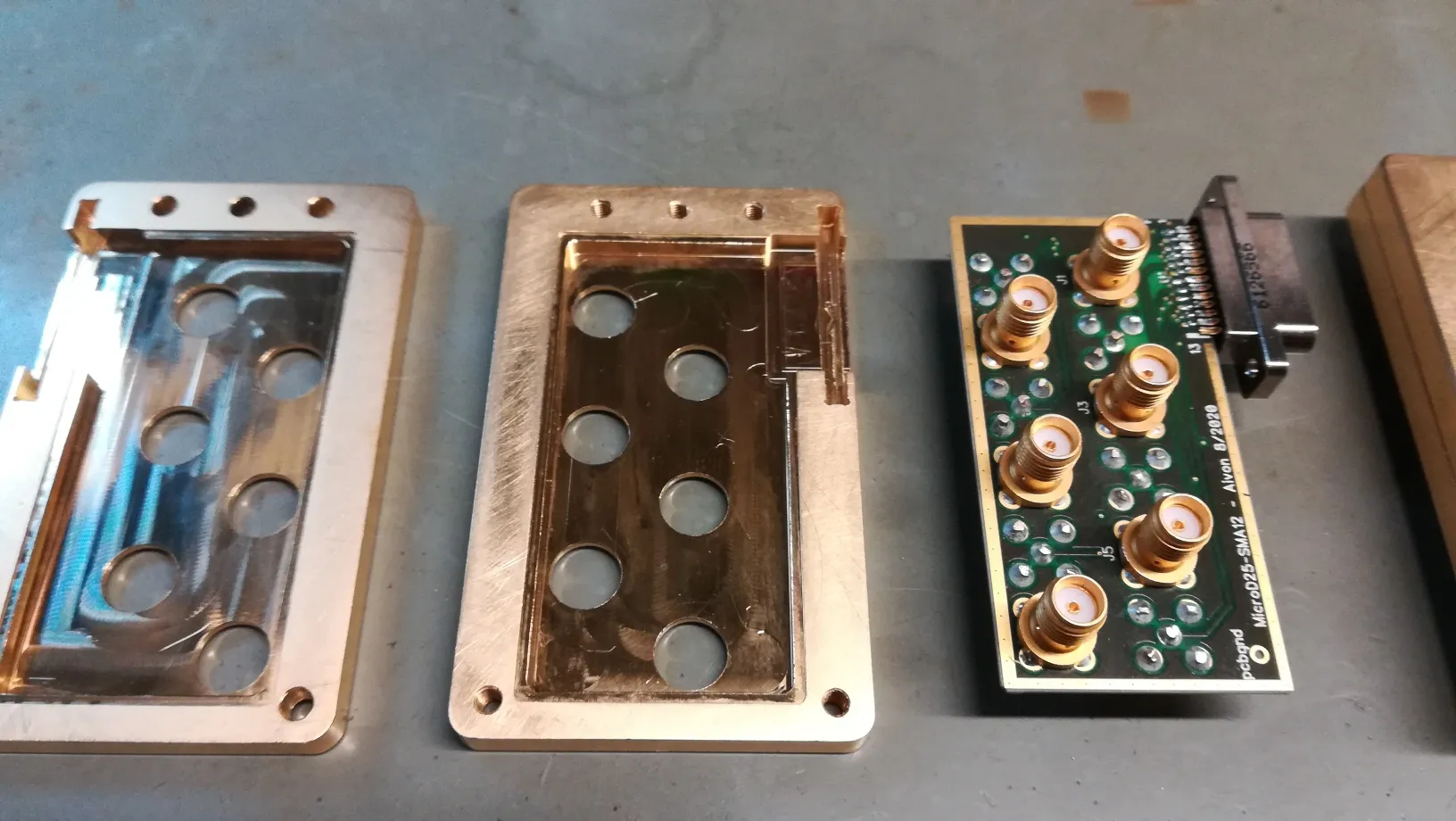

Micro-D25 to 12 SMA with individual grounds. Another 6 SMA’s on the other side. Size 44mm x 73 mm x 10 mm without connectors.

Au-plated copper enclosure.

Micro-D25 to solder wire with filtering
