SMA and BNC boxes

Nord Cryo BNC (or SMA)-box is a BNC (or SMA) jack-to-jack interconnecting box with pads for surface-mount components (size 0603) inside the box. Minimum order quantity 5 boxes. Please ask for a quotation. SMA Box. Length without connectors 35.0 mm (with connectors 50.6 mm). Width 15.1 mm, height 10.2 mm. SMA Box opened. BNC box has Read more about SMA and BNC boxes[ ]

Nord Cryo BNC (or SMA)-box is a BNC (or SMA) jack-to-jack interconnecting box with pads for surface-mount components (size 0603) inside the box. Minimum order quantity 5 boxes. Please ask for a quotation.

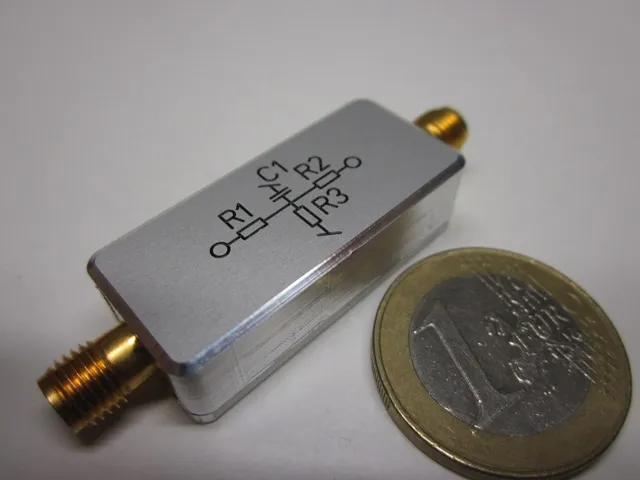

IMG_1981_SMAbox_closed
Length without connectors 35.0 mm (with connectors 50.6 mm). Width 15.1 mm, height 10.2 mm.

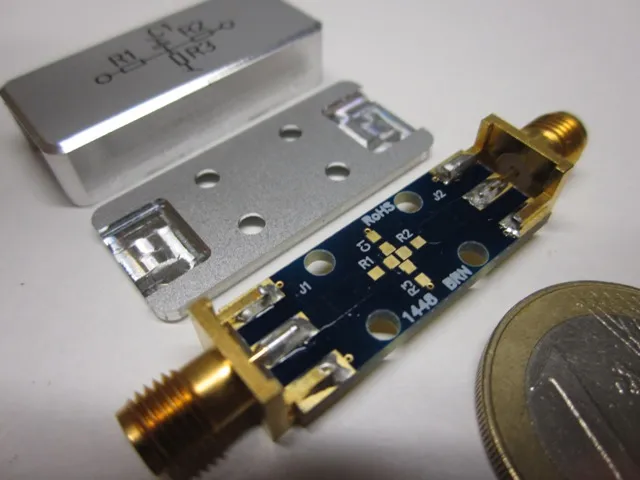

IMG_1983_SMAbox_open

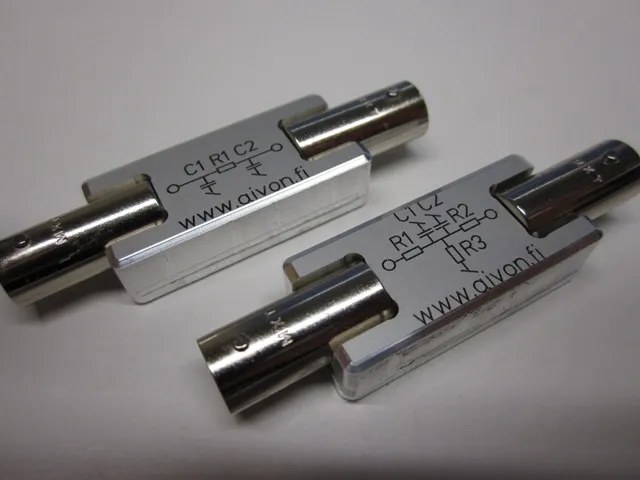

IMG_1974_small

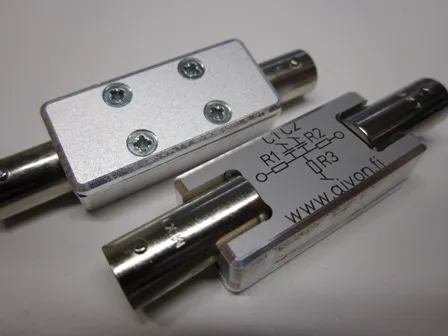

IMG_1975_small
Length without connectors 39.2 mm (with connectors 64.9 mm). Width 17.6 mm, height 12.0 mm.

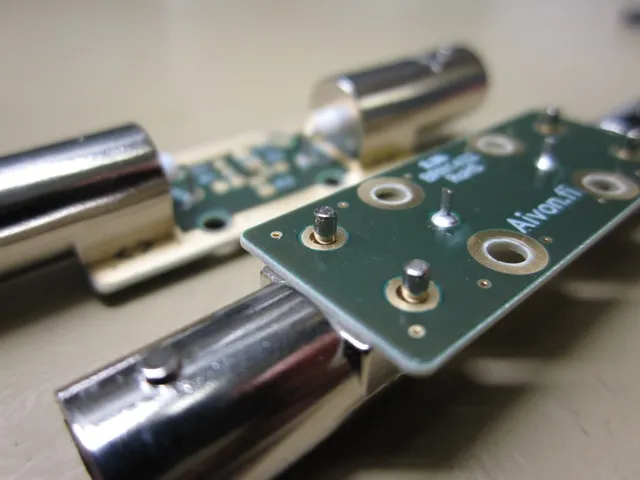

IMG_1976_small

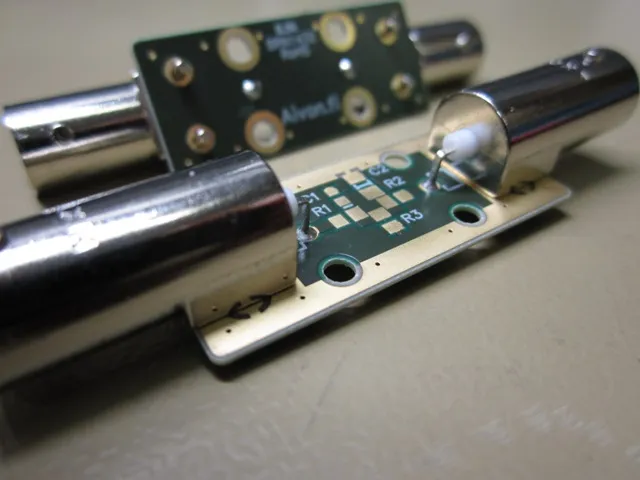

IMG_1977_small
